Step Down Transformer: A Beginner-Friendly Guide to How It Works and Why It Matters

Introduction

A step down transformer is a simple but extremely important electrical device used to reduce a higher AC voltage to a lower, safer voltage. You may not notice transformers in everyday life, but they are involved in power distribution, electronics, chargers, control systems, and many electrical machines.

The basic idea is easy to understand. Electricity may travel long distances at a relatively high voltage, but many devices cannot use that voltage directly. A step down transformer reduces the voltage to a level that equipment can safely handle.

For beginners, learning about this device is useful because it introduces several important electrical concepts, including voltage, current, coils, magnetic fields, and electrical safety. Once you understand how a transformer works, many other electrical systems become easier to understand.

What Is a Step Down Transformer?

A step down transformer is an electrical transformer designed to lower AC voltage. It normally has two coils, called the primary winding and secondary winding, placed around a magnetic core.

The primary winding receives the input voltage. The secondary winding provides the reduced output voltage. The two windings are electrically separated but are connected through a changing magnetic field inside the core.

For example, a transformer could reduce a higher AC voltage to a much lower voltage suitable for a control circuit. The exact input and output values depend on the transformer’s design.

A useful beginner tip is to remember one simple phrase: high voltage in, lower voltage out. That is the main purpose of a step down transformer.

How Does a Step Down Transformer Work?

The working principle is based on electromagnetic induction. When alternating current flows through the primary winding, it produces a changing magnetic field around the coil.

The magnetic core helps guide this changing magnetic field toward the secondary winding. As the magnetic field changes, it induces a voltage in the secondary winding.

The number of turns in each winding determines the voltage relationship. A step down transformer has fewer turns on its secondary winding than on its primary winding.

The basic relationship can be represented as:

Vₚ / Vₛ = Nₚ / Nₛ

Here, Vₚ represents primary voltage, Vₛ represents secondary voltage, Nₚ represents the number of primary turns, and Nₛ represents the number of secondary turns.

If the secondary winding has fewer turns, the secondary voltage becomes lower.

A practical beginner tip is not to focus on memorizing the formula immediately. First understand the relationship between the number of coil turns and voltage. The formula will make more sense after that.

Where Are Step Down Transformers Used?

These transformers are found in many places. They can be used in power supplies, doorbell systems, control panels, industrial equipment, electronic circuits, and other applications where a lower AC voltage is required.

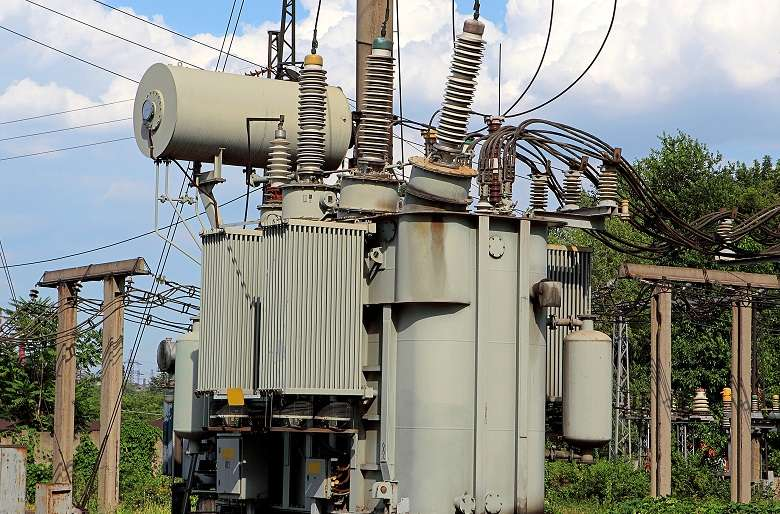

They are also important in electrical distribution systems. Electricity may be transmitted at high voltages to reduce losses over long distances. Before electricity reaches certain users or equipment, transformers can reduce the voltage to an appropriate level.

Small transformers are also common in low-voltage control systems. A machine may use a higher voltage for its main power system while its control circuit operates at a lower voltage.

For beginners, it helps to think about transformers as voltage-adjusting devices. They allow electrical systems to use different voltage levels without directly connecting equipment designed for one voltage to an unsuitable supply.

Main Parts of a Step Down Transformer

A typical transformer contains several important parts. The windings carry electrical current, while the core provides a path for magnetic flux.

The primary winding receives the input AC voltage. The secondary winding supplies the reduced voltage to the connected load. The magnetic core helps transfer magnetic energy efficiently between the windings.

Larger transformers may also include insulation, cooling systems, protective components, terminals, and an enclosure. Their construction depends on their size and intended application.

A beginner tip is to learn the primary, secondary, and core first. These three parts explain most of the basic operating principle without making the subject unnecessarily complicated.

Step Down Transformer vs. Step Up Transformer

A step down transformer and a step up transformer perform opposite voltage functions. A step down transformer reduces voltage, while a step up transformer increases voltage.

The difference mainly comes from the relationship between the primary and secondary windings. A step down design has fewer secondary turns than primary turns. A step up design has more secondary turns than primary turns.

The current relationship also changes. When voltage is reduced, the available current can increase under ideal conditions, while power is approximately conserved apart from losses.

Common Beginner Mistakes

One common mistake is assuming that a transformer can work with any type of electricity. Traditional transformers rely on changing magnetic fields, so ordinary transformers are designed for AC operation rather than direct DC operation.

Another mistake is choosing a transformer based only on voltage. The required power or current capacity also matters. A transformer with the correct voltage but insufficient capacity may overheat or fail.

Beginners may also connect windings incorrectly or ignore the manufacturer’s specifications. Transformer terminals should always be identified before making connections.

Electrical safety is especially important. Never experiment with mains voltage simply to learn how a transformer works. Use properly rated equipment and follow relevant electrical safety procedures.

Advanced Guidance for Better Understanding

Once you understand the basics, you can start learning about transformer efficiency, voltage regulation, impedance, magnetic saturation, winding resistance, and core losses.

Real transformers are not perfectly efficient. Some energy is lost as heat and through magnetic effects. Larger transformer systems therefore require appropriate cooling and protection.

If you want to work professionally with transformers, learn how to read nameplates and electrical diagrams. Pay attention to rated voltage, frequency, power capacity, connection configuration, and insulation information.

It is also useful to understand why transformers are selected for particular loads. A professional does not simply ask, “What voltage do I need?” They also consider current, power, operating conditions, environmental factors, safety requirements, and expected load behavior.

Simple Action Plan for Beginners

• Learn the difference between AC voltage and DC voltage.
• Understand the purpose of the primary and secondary windings.
• Study the relationship between winding turns and voltage.
• Practice reading a basic transformer diagram.
• Learn how voltage, current, and power are related.
• Read transformer nameplate information.
• Study basic electrical safety before handling equipment.
• Use low-voltage educational equipment for practical learning.

Following these steps gives you a strong foundation without trying to understand everything at once. Start with the principle, then move toward calculations and practical applications.

Why Step Down Transformers Matter This Year and in the Future

Step down transformers remain relevant because modern electrical systems continue to depend on different voltage levels. Homes, businesses, factories, communication systems, automation equipment, and electronic devices all require carefully managed electrical power.

As electrical technology develops, transformers continue to appear in new applications. Renewable-energy systems, charging infrastructure, industrial automation, and modern power networks all require equipment capable of managing electrical energy efficiently.

The basic transformer principle is also unlikely to disappear. Even as power systems become smarter and more efficient, controlling voltage remains an essential part of electrical engineering.

For someone beginning an electrical career, understanding a step down transformer is therefore more than learning about one component. It is a useful starting point for understanding how electrical energy moves through larger systems.

Frequently Asked Questions

What does a step down transformer do?

It reduces a higher AC voltage to a lower AC voltage that can be suitable for particular electrical equipment or circuits.

Does a step down transformer increase current?

Ideally, when voltage decreases, the available current can increase so that power remains approximately balanced. Real transformers have losses, so the actual output is somewhat lower.

Can a transformer work with DC?

A conventional transformer is designed to operate with changing current, normally AC. Applying steady DC to a typical transformer can cause excessive current and overheating.

How do I identify a step down transformer?

Look at the winding relationship and rated input and output voltages. A transformer designed for a higher input voltage and lower output voltage is a step down type.

Is it safe for beginners to handle transformers?

Low-voltage educational equipment can be useful for learning, but mains-connected transformers can be dangerous. Beginners should avoid live high-voltage work and follow qualified electrical guidance.

Conclusion

A step down transformer may look like a simple electrical component, but its job is fundamental to many power and electronic systems. Its main purpose is straightforward: it takes a higher AC voltage and provides a lower voltage through electromagnetic induction.

For beginners, the best way to learn is to start with the primary winding, secondary winding, magnetic core, and turns ratio. After that, concepts such as current, power, efficiency, and voltage regulation become much easier to understand.

You do not need to become an electrical engineer overnight. Learn one concept at a time, study simple diagrams, practice with safe educational equipment, and always respect electrical safety. With that approach, the step down transformer can become a clear and useful introduction to the wider world of electrical engineering.
